Description:

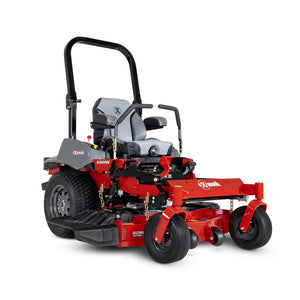

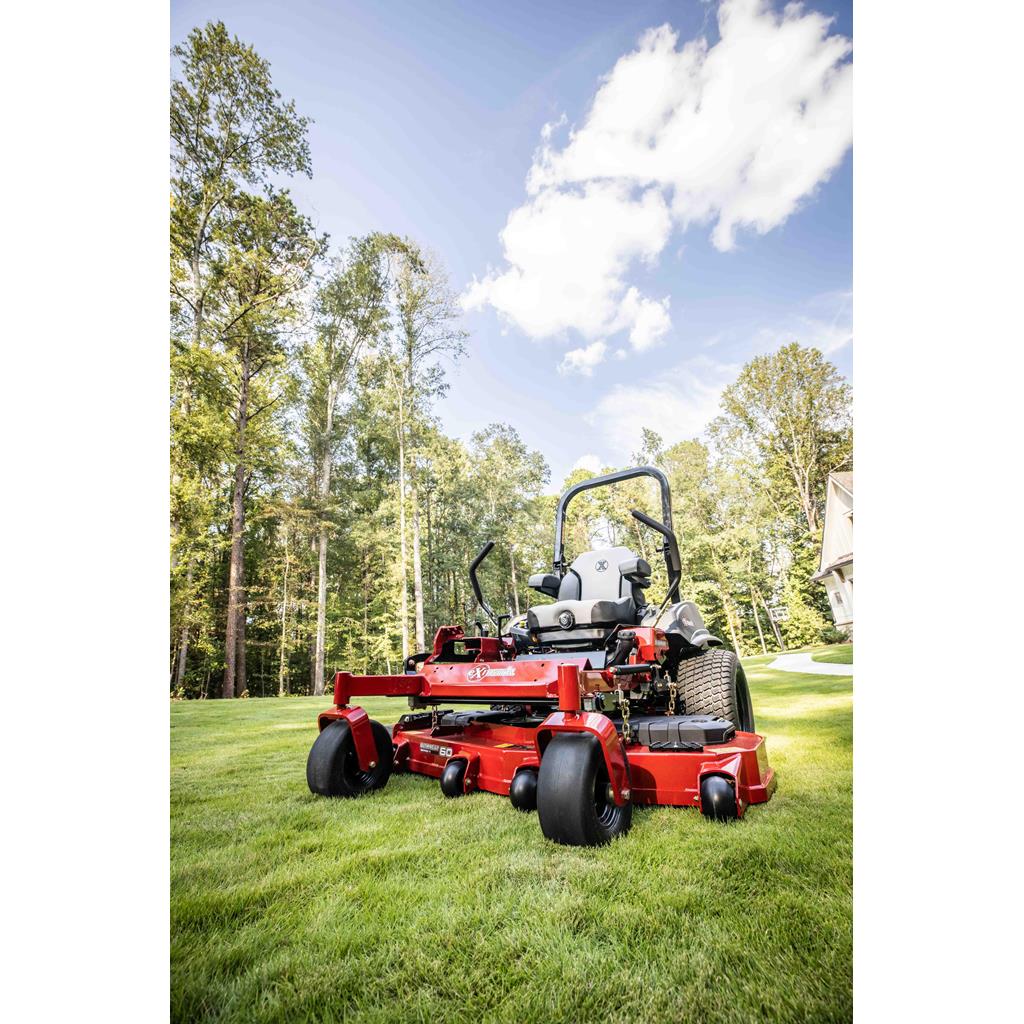

The Lazer Z S-Series makes up the core of countless landscape professionals’ fleets. With 30 years of refinement and innovation, the Lazer Z S-Series delivers maximum durability and Exmark Signature cut quality, with options for larger decks and more powerful engines than the Lazer Z E-Series. Select from 52-, 60-, or 72-inch UltraCut Series 4, or 60- or 72-inch UltraCut Rear Discharge cutting decks, with a choice of powerful Kawasaki or EFI Kohler commercial engines.

Specifications:

• UPC: 193308243511
• Model: LRS801GKA724A1
• Starter: Electric
• Fuel Type: Gas (Carbureted)
• Fuel Capacity: 12 gallons (single tank)
• Fuel Indicator: Yes (electronic sender)
• Carb Compliant: No
• Curb Weight: 1,250 lbs
• ROPS: 2-post foldable with seat belt and latch

Engine

• Brand: Kawasaki®
• Model: FX801V
• Displacement: 852 cc
• Series: V-Twin
• Spec: FX801V
• Speed: 3,750 RPM
• Air Filter: Heavy-duty canister
• Electrical System: 12V battery with 15-amp alternator
• PTO Engagement: MagStop electromagnetic, 200 ft-lb clutch with spot brake
• Standard Features: Engine hour meter, cup holder

Drive System

• Type: Hydro-Drive
• Drive Description:
• Exmark exclusive Parker unitized pump and wheel motor systems
• Integrated cooling fans, shock valve
• 1.7 qt integrated reservoir
• Spin-on filter
• 12cc pumps and 17.1 cu in motors
• Speeds:
• Forward: 0–10.0 mph
• Reverse: 0–7.0 mph
• Transmission Speeds: Infinitely variable
• Drive Wheel Release: Yes (for moving without engine running)
• Parking Brake: Lever-actuated disc brake

Steering & Controls

• Steering Control:
• Hydraulically dampened twin levers
• Adjustable fore/aft and 2-position height
• 3-position damper settings
• Deck Lift: Foot-controlled, quick adjustment and transport position

Deck

• Deck Style: Floating
• Deck Series: UltraCut Series 4
• Cutting Width: 72 in
• Discharge: Side discharge (standard), mulch/bag option
• Deck Construction:
• 10-gauge top (formed, seam-welded)
• 7-gauge side skirt
• 7-gauge spindle mounting
• Cutting Heights: 1.0" to 5.5" (in 0.25" increments)
• Blades: 3 blades at 24.5"
• Blade Tip Speed: ~18,500 fpm
• Blade Spindles:
• Sealed, non-greasable
• 7.75" cutter housing
• 25 mm (.98") spindle shaft with splined blade driver

Tires

• Front Casters: 13 x 6.5-6, smooth tread, semi-pneumatic
• Drive Tires (Rear): 24 x 12-12, 4-ply Grassmaster TL
• Caster Forks: 0.50" thick caster yoke arms

Chassis

• Frame: Welded, unibody 1.5" x 3" tubular steel
• Length: 86.1 in
• Width (overall): 84.9 in
• Height: 70.5 in
